CNC Milling

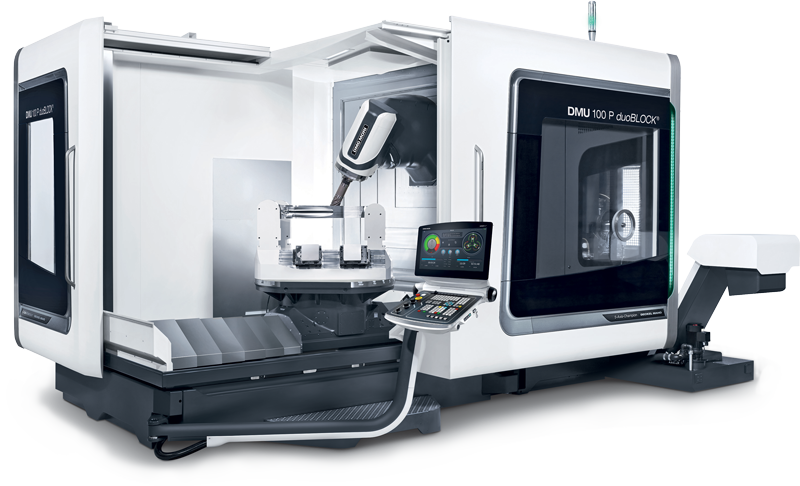

DMG DMU 100P Vertical/Horizontal 5-Axis Machining Center

dmg-dmu100pdb4-800px

  • 39.4″X 49.2″Y 39.4″Z Travel
  • 43.3″ Diameter table
  • 12,000 RPMs
  • -30° TO + 180° B axis rotates on a 45° plane
  • 60 tools
  • live 360° table



SNK RB-200F Series 5-Axis Bridge Type Machining Center

snk_rb-f

  • 167″X 114″Y 56″Z Travel
  • up to 10,000 RPMs
  • 95° Tilt and rotates 360°
  • with massive spindlehead and ram assemblies for multi-angle machine and simultaneous 5-axis contouring
  • The wide range capability reduces the need for costly special tooling and fixtures.



(2) SNK HPS-120B 5-Axis CNC Horizontal Machining Center

SNK HPS-120B

  • One machine equipped with a twin pallet changer
  • Size of working surface 48″ x 120″
  • up to 15,000 RPMs
  • 90° Tilt and rotates 360°
  • The machine realizes high productivity by its high spindle speed and high federate milling capabilities.
  • Such high spindle speed and high feed rate milling, which makes cutting heat difficult to be conducted to the work piece, achieves high accuracy with minimal thermal distortion on the work piece.
  • Since the mass of the moving machine members has been drastically reduced as compared to the conventional machines, the dynamic rigidity improves, and the milling accuracy is also increased through the use of a high-responsive CNC system.



(2) Haas UMC-750 5-Axis Trunnion Machining CenterHaasUMC750

  • 30″X 20″Y 20″Z Travel
  • 40 Taper Spindle
  • 30 HP
  • 10,000 RPM’s
  • 20-40 Station Tool Changer

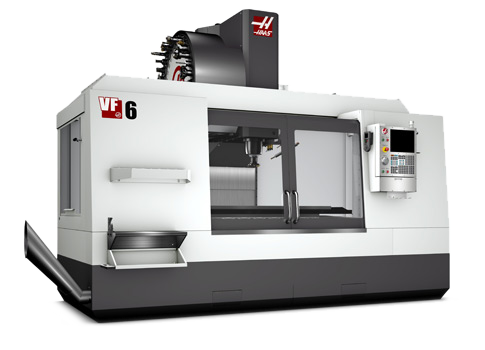

(9) Haas VF6 Vertical Machining CenterHaasVF6-50

  • 64″X 32″Y 30″Z Travel
  • 40 or 50 Taper Spindle
  • 20-30 HP
  • 10,000 RPM’s
  • 20-40 Station Tool Changer



(1) Haas VF5 Vertical Machining CenterHaasVF5-40

  • 50″X 32″Y 28″Z Travel
  • 50 Taper Spindle
  • 30 HP
  • 5,000 RPM’s
  • 20 Station Tool Changer



(4) Haas VR-11B Vertical Machining CenterHaasVR-11B

  • 120″X 40″Y 30″Z Travel
  • 40 Taper Spindle
  • 30 HP
  • 5th Axis
  • 15,000 RPM’s
  • 32 Station Tool Changer
  • 32° Tilt on A & B Axis



(4) Haas VF-11 Vertical Machining Center
vf11-50_lc_smtc-487px

  • 120″X 40″Y 30″Z Travel
  • 50 Taper Spindle
  • 30 HP
  • 4th & 5th Axis Attachments
  • 10,000 RPM’s
  • 30 Station Tool Changer



(1) Haas EC630 Horizontal Machining CentersHaasEC630

  • 40″X 33″Y 35″Z Travel
  • 50 Taper Spindle
  • 4th Axis
  • 10,000 RPM’s
  • 30 HP w/twin pallet system
  • Geared head for cutting hard metals as well as aluminum
  • 72 Station Tool Changer with high speed machining and look ahead



(2) Haas EC400PP Horizontal Machining CentersHaasEC400PP

  • 20″X 20″X 20″Z Travel
  • Dual 400mm twin pallet system with 6-pallet pool
  • 40 Taper Spindle
  • 12,000 RPM’s
  • 20 HP
  • 70 Station Tool side-mount changer

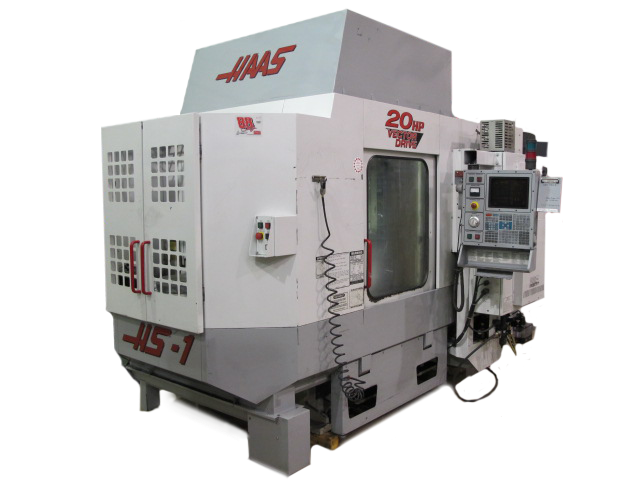

(1) Haas HS-1RP Horizontal Machining CenterHaasHS-1RP

  • 24″X 20″Y 22″Z Travel
  • 40 Taper Spindle
  • 30 HP w/twin pallet system
  • 4th Axis
  • 10,000 RPM’s
  • 60 Station Tool Changer with high speed machining and look ahead



Various 4th and 5th Axis Rotary Attachments to fit Haas Vertical Machining Centers
